Introducing OBERTON 18NXB1600

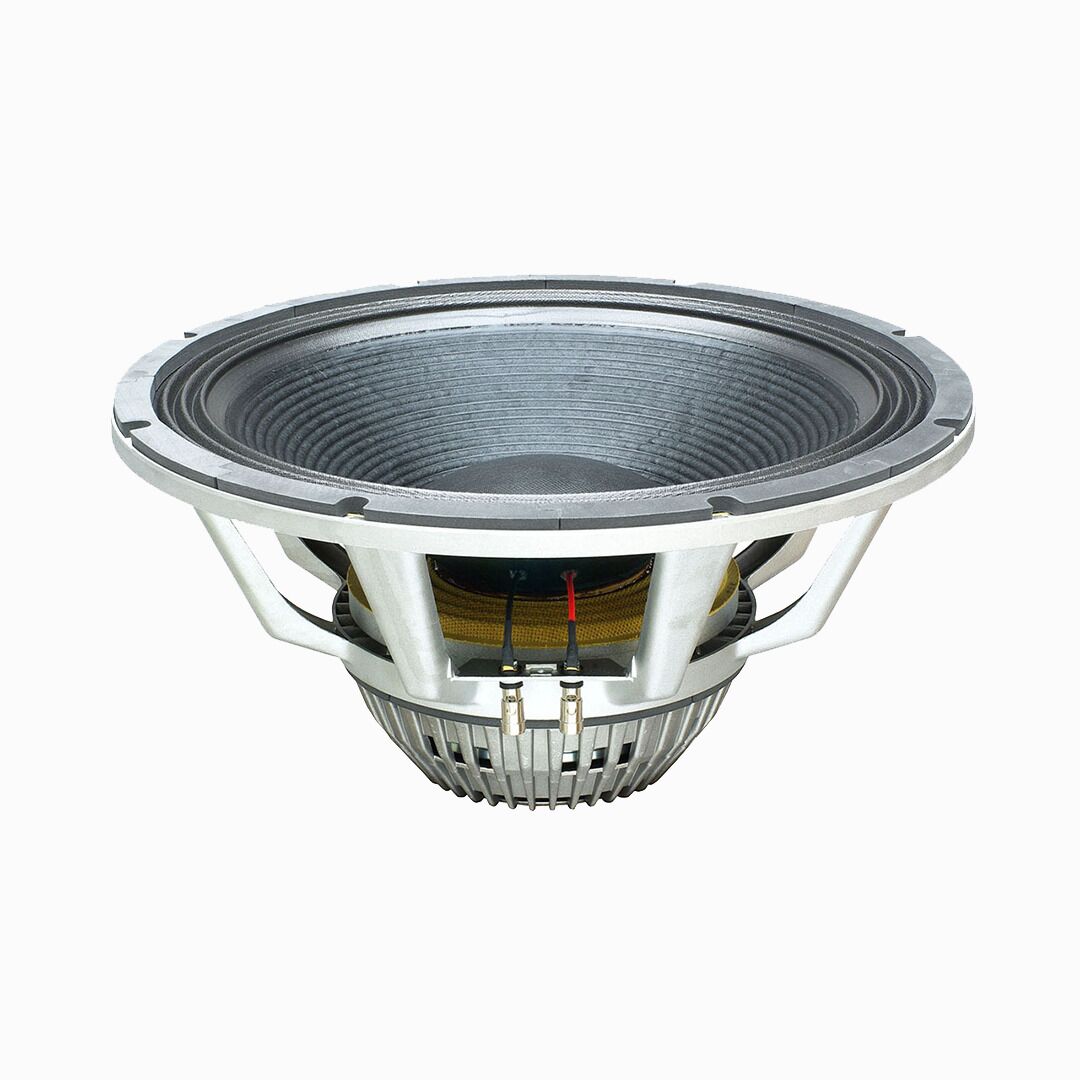

The 18NXB1600 neodymium bass loudspeaker is specially designed to deliver very high impact bass response, with exceptional high power capacity. It incorporates an 4.5″ sandwich voice coil, double silicone spider assembly, Kevlar paper cone and die cast vented aluminum frame. Powerful, vented neodymium magnetic structure with massive heatsink and double demodulating rings reduced power compression. The result is high efficient transducer for subwoofer applications, with the ability to handle very high excursion with low distortion and reduced thermal power compression.
KEY FEATURES
- 97 db 1W / 1m average sensitivity
- 115 mm ( 4.5”) high temperature sandwich voice coil
- 3200 W AES program power
- Vented neodymium magnet assembly with massive heatsink
- Double aluminum demodulating rings for lower distortion and improved heat dissipation
- Double silicone spiders for improved excursion control and linearity
- Water protected cone
S P E C I F I C A T I O N S
Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.
| Nominal Diameter | 18″/461 inch/mm |
|---|---|
| Impedance | 8 Ohm |
| Minimum Impedance | 6.8 Ohm |
| Power Capacity AES | 1600 W |
| Program Power | 3200 W |
| Sensitivity | (50-200 Hz) 97 dB/W/m |
| Frequency Range | 30 – 1000 Hz |
| Voice Coil Diameter | 115 mm (4.5”) |
| Voice Coil Material | Copper |
| Voice Coil Former | Glassfiber |
|---|---|
| V.C. Winding Depth | 32 mm |
| Magnet Gap Depth | 14 mm |
| Cone Material | Kevlar paper |
| Basket | Die cast aluminium |
| Magnet | Neodymium |
| Flux Density | 1.1 T |

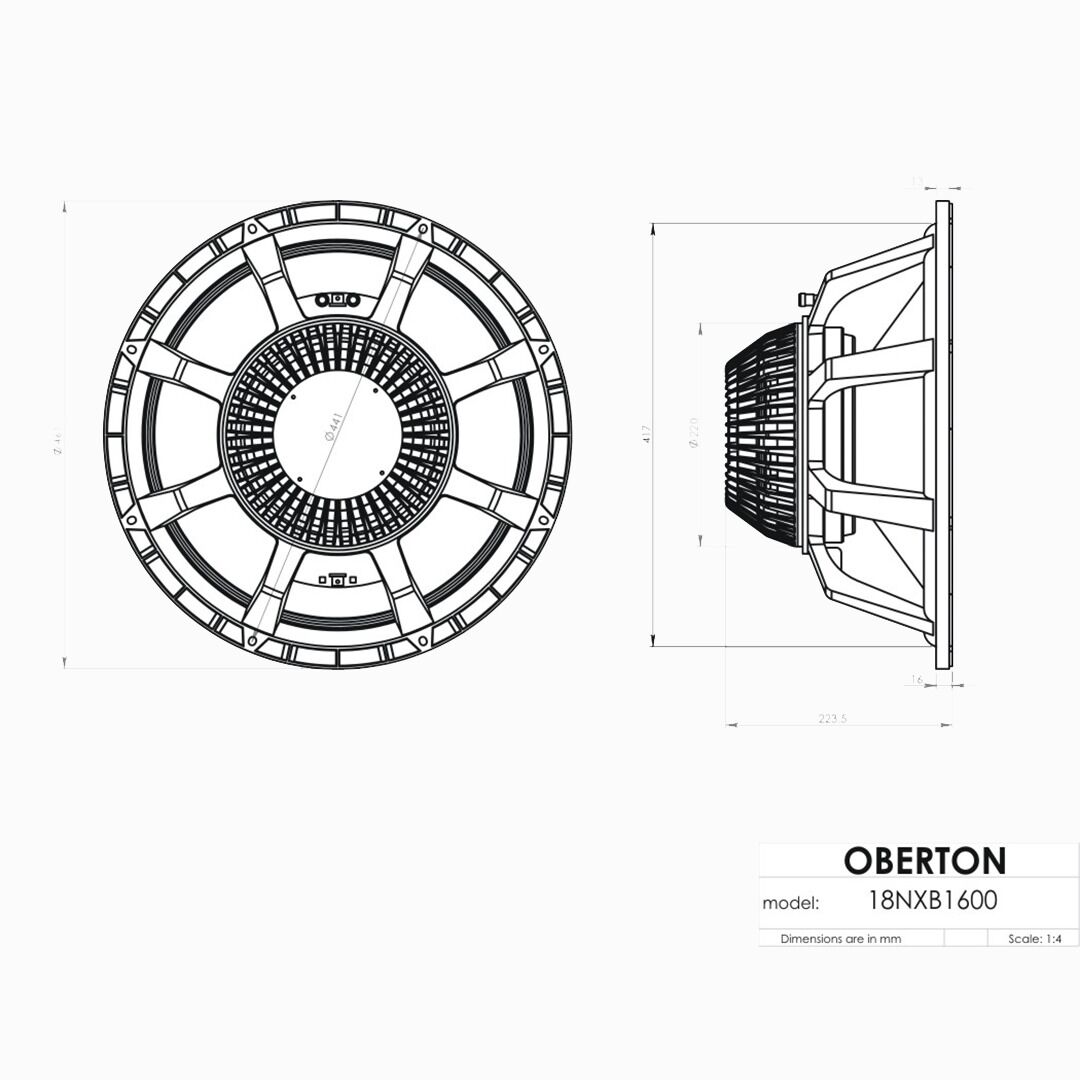

| Overall Depth | 224 mm |
| Net Weight | 11.7 kg |
