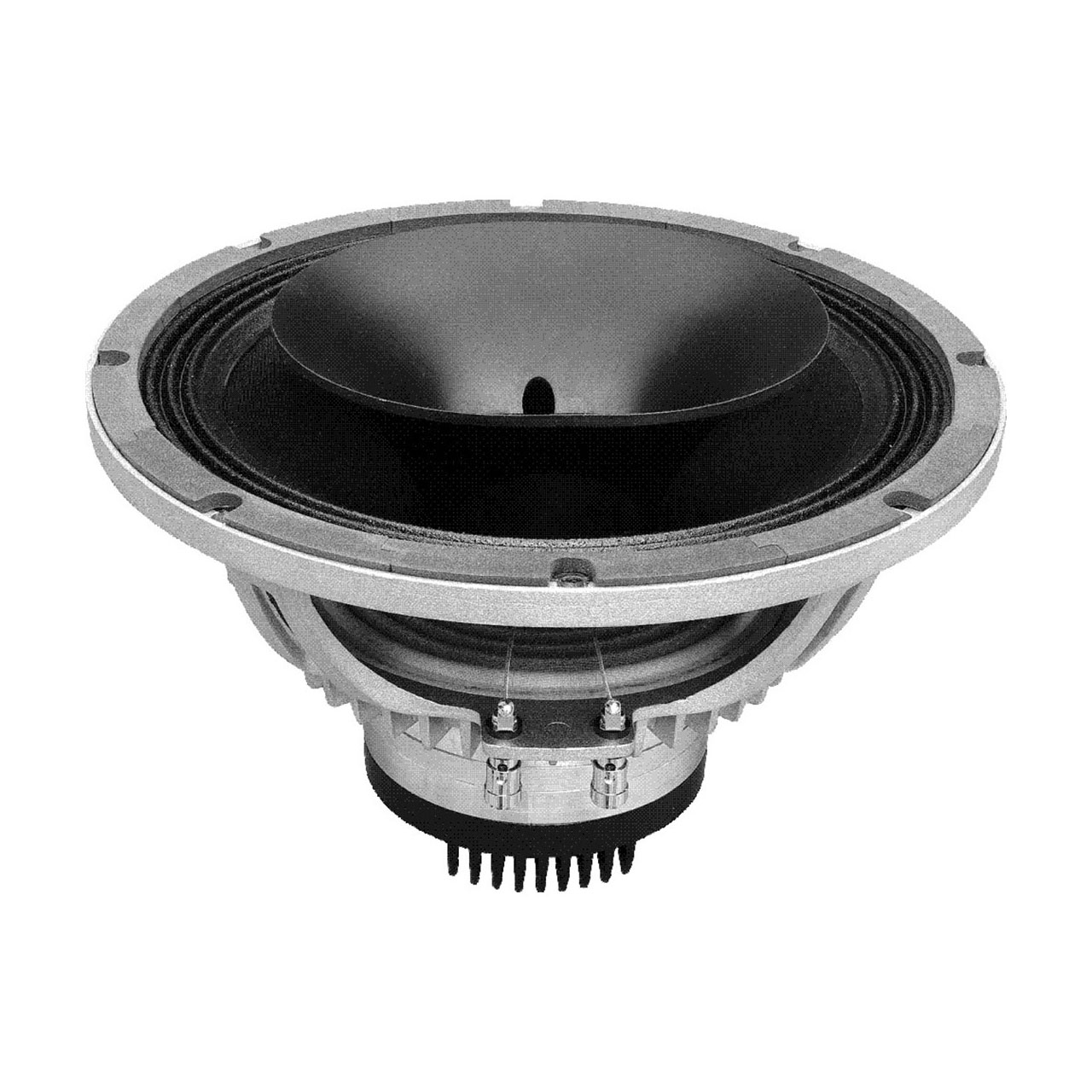

The 12HCX is a 12″ / 1.4″ coaxial transducer with integrated horn, designed for use in compact reflex enclosures and stage monitors with a nominal dispersion of 70 x 50 degrees.
The low profile, smooth curvilinear LF cone provides smooth response within its intended frequency range and water prove protective coating, allowing application in a wide range of environments. The state-of-the-art 77 mm (3 in) LF voice coil has Kapton former, which together with high temperature resistant resin ensure high reliability by high power.
A triple aluminium demodulating rings on the magnet structure reduce distortion and inductance and improve transient response.
The HF driver diaphragm assembly, using cotton composite dome this together with phasing plug improve linearity of frequency response in high end.
The HF magnet structure has cooper ring on the pole piece, which reduces the inductance figure of frequencies above 10 kHz, improving phase and impedance linearisation. This ensures extremely high SPL in the high end of the frequency response.
