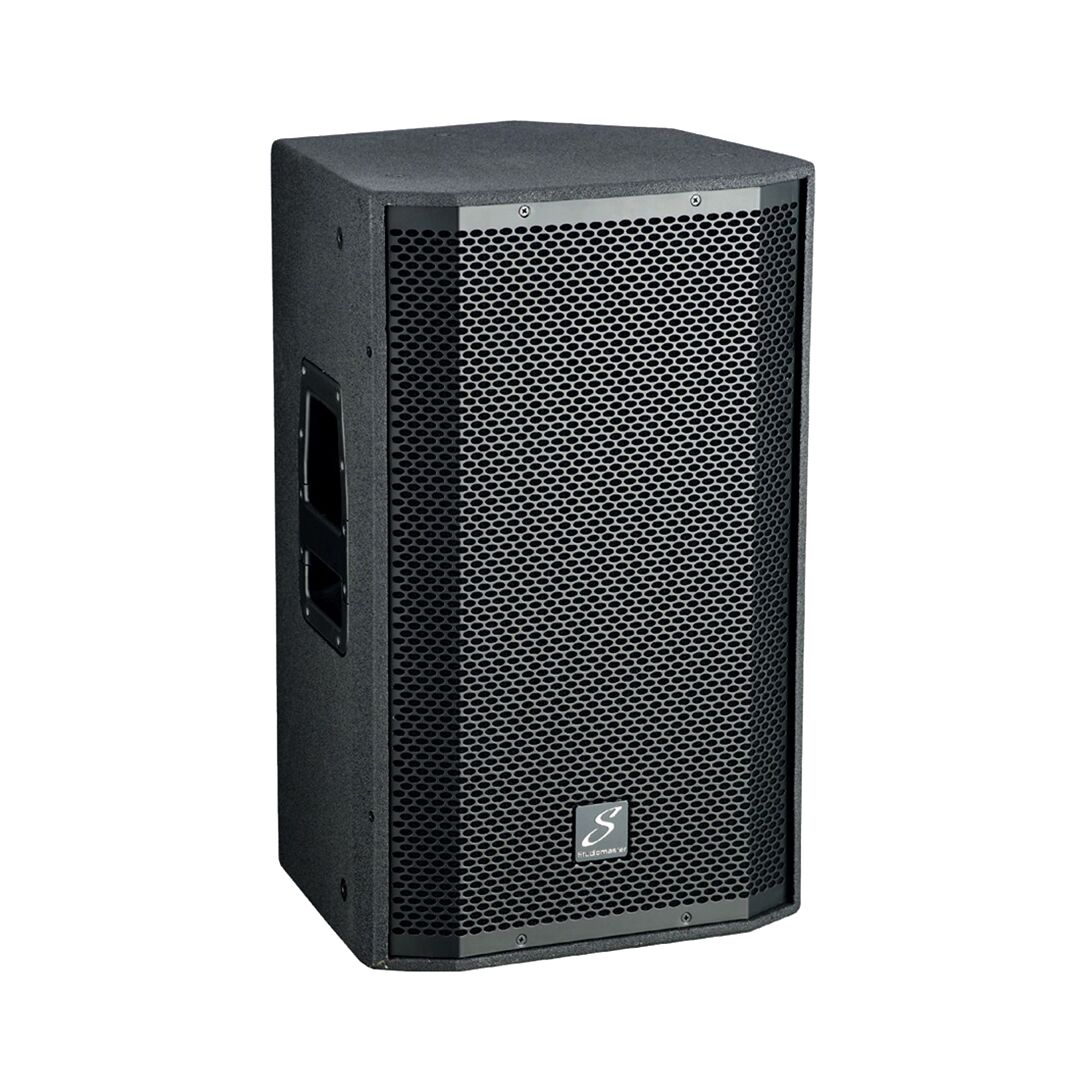

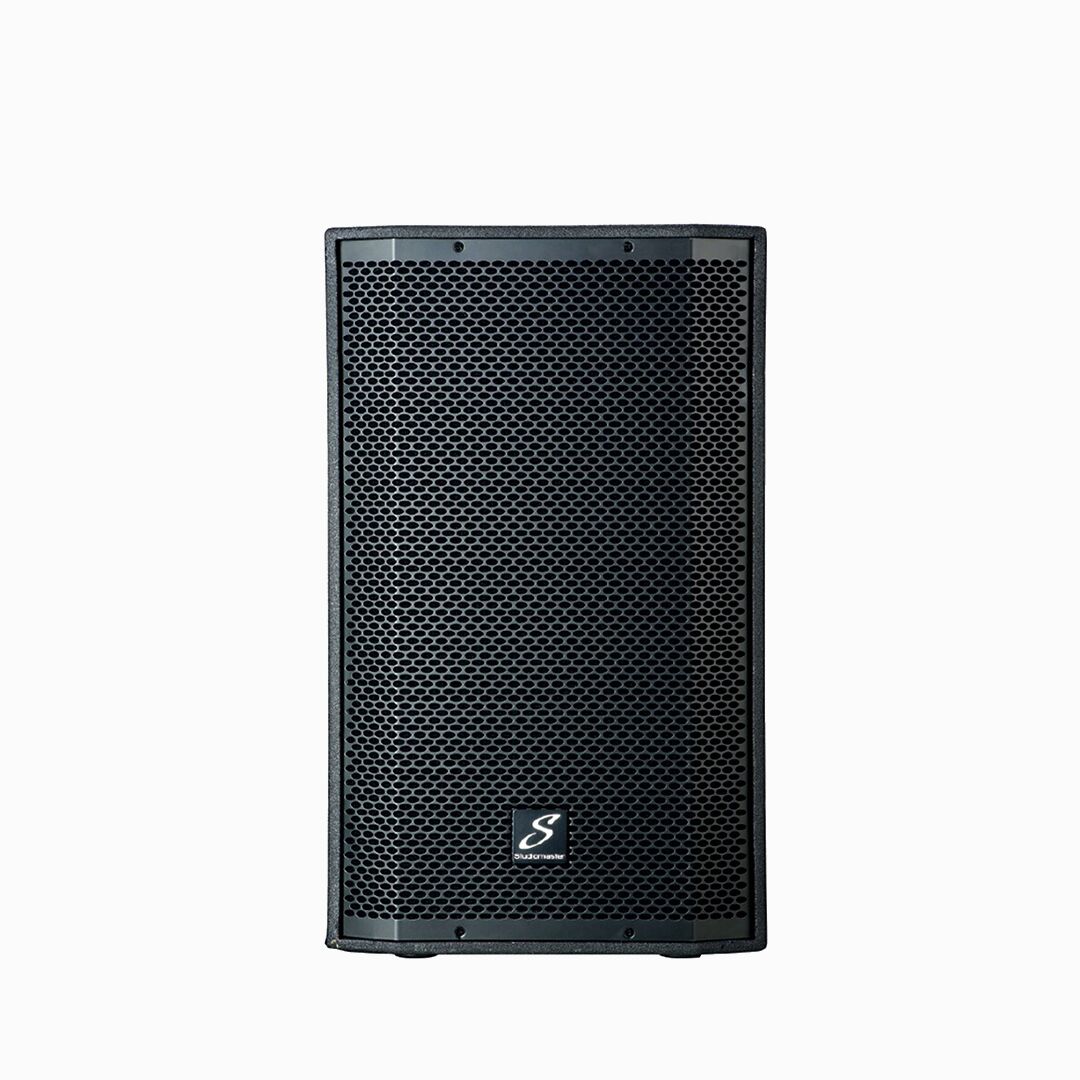

Studiomaster VENTURE speaker cabinet series
The Venture series are compact, high definition active and passive loudspeakers. Featuring 12″ and 15″ cabinets and a matched 18″ sub, their huge system power make them the ideal PA or stage monitor solution.
Weighing in from just 17kg with a peak power handling of up to 1,600 watts, their simplicity of use is only rivalled by the clarity, sonic impact and bass response they can produce.
Expanding the proven design of the VENTURE series, the AP models include a 24 bit / 48kHz DIGITAL speaker processor, with comprehensive DSP features, 4 cabinet tone settings, adjustable 3 band EQ, adjustable limiter, delay and an overall volume control allowing you to achieve the sound you want, whatever the situation.
Made from 15mm industrial grade 9-ply plywood, internally braced and finished in a wear-resistant black textured coating and a heavy duty steel front grill. A 60 degree bevel to the rear, allows the 12″ & 15″ cabinets to also be used as stage monitors.
For a class leading PA system at “industry leading prices” look no further.
KEY FEATURES
- 15″ Active speaker cabinet
- 1200 watts peak power
- Class D amplification
- Industrial grade 15mm 9-ply braced cabinets
- Multiple M10 hanging points
- Robust metal grill
S P E C I F I C A T I O N S
| Format | 15″ two way |
|---|---|
| Frequency response | 55Hz – 18kHz (-3dB) |
| Frequency range | 45kHz – 20kHz (-10dB) |
| Amplifier power rms | LF400w HF200w |
| Amplifier power peak | 1200w |
| Crossover frequency | 1.5kHz |
| Woofer | 15″ dia, 2.5″ voice coil, ferrite magnet |
| Compression driver | 1.7″ voice coil, ferrite magnet |
| Coverage (Horixontal x Vertical) | 80 x 60 |
|---|---|
| Max SPL | 134dB |
| Cabinet material | 15mm ply wood |
| Input Connections | 2Channel, XLR, Jack, RCA phono |
| Fly points | 13 x M10 |
| Power requirements | 230/115V ~ 50/60Hz |
| Dimension W*H*D | 430x704x400 (mm) |
| Weight net/shipping | 21.5KG/25.6Kg |
