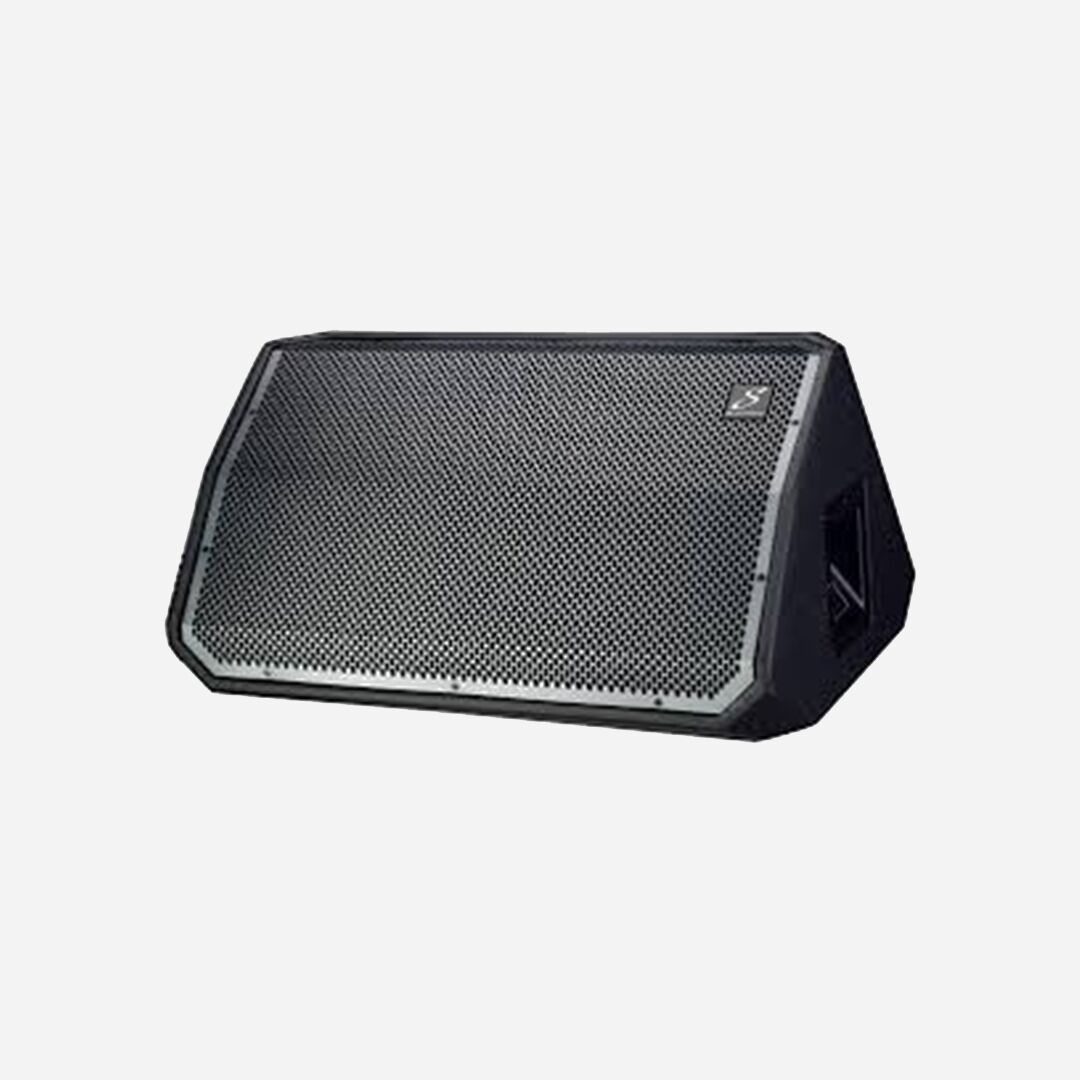

Introducing Studiomaster S3 speaker cabinet series
The new premium quality Studiomaster speaker models are the S3 range of active and passive, high quality speaker cabinets. Featuring 14 models to choose from, all fitted with premium components and CLASS D amplification in the active models.
With up to date circuitry, the active moves feature a boost switch to add extra tone to your background music, and a unique switchable standby mode which will turn off the amplifier when no signal has been detected for 3 minutes. As soon as a signal is detected again, the amplifier will resume operation.
All models have large recessed side handles, the 10, 12 and 15” models come with M10 flying points and the larger 2×12” and 2×15” come with rear mounted castors for easy transportation.
KEY FEATURES
- 15mm plywood
- 1” throat compression drivers
- Multiple M10 flying points
- Durable unique effect paint finish
- Premium LF woofer and HF compression drivers
- Standby mode
- Class D powered
S P E C I F I C A T I O N S
| Type | 2 way active 15″ |
|---|---|
| Frequency response | 50Hz~18kHz(±3dB) |
| AMP Power RMS | 450W(LF),60W(HF) |
| Crossover frequency | 2kHz |
| Input sensitivity | -10dBV |
| Max SPL | 128dB |
| Coverage (HxV) | 90°x40° |
| LF | 1×15”/75mm Voice coil |
|---|---|
| HF | 1×1.75”/44mm Voice coil |
| 35mm pole mount | No |
| Connectors | JACK-XLR |
| Dimensions (WxHxD) | 701×466×399mm |
| Weight net | 25kg |
