Introducing V12 Series

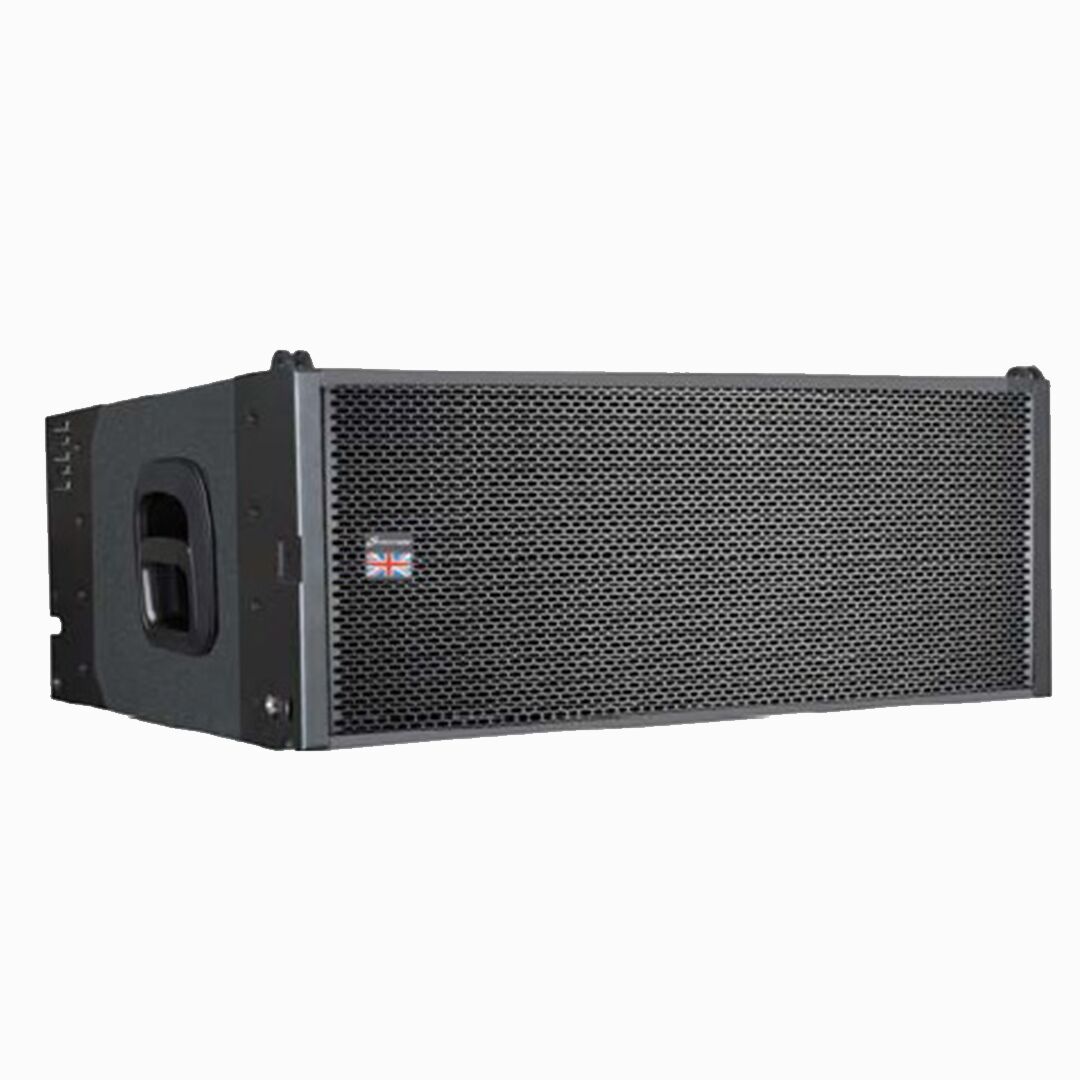

The Studomaster V12 line array enclosure is a new designed three way system. A large operating frequency range of 50Hz – 20kHz is achieved with a the HF being provided by two 74mm compression drivers, the MF is provided by two high sensitivity 10” drivers, and the LF by one 12” drivers. All combined together creates a system with dynamic headroom and reduced weight/size, yet still produces high SPL / volume levels.
The V12 cabinet is trapezoidal in shape, which enhances the sound projection and reduces dead spots. When suspending using the aluminium suspension system, the angles of each enclosure can be adjusted between 0 and 8 degrees.
To finish the cabinet, a durable paint finish is used, and a tough grille is fitted to protect from the hardest conditions.
In addition to the V12 line array range, is a brand new all weather, water resistant enclosure. Featuring premium sealed componenets, and a brand new hoisting system. With the all weather capabilities, the V12W is suitable for a greater range of applications.
KEY FEATURES
- 2 x 12” LF / 1 x 10” MF / 2 x 74mm compression drivers LF
- High efficiency and SPL from three way system
- Superior quality components used thoughout
- Adjustable aluminium suspension system available
S P E C I F I C A T I O N S
| MAX SPL | LF 135dB / MF 136dB / HF 141dB |
|---|---|
| PEAK | LF 3200W / MF 1200W / HF 640W |
| PGM | LF 1600W / MF 600W / HF 320W |
| RMS | LF 800W / MF 300W / HF 160W |
| WEIGHT | 62kg |
| Cabinet type | 3-way passive line array |
| Frequency response | 50Hz – 20kHz (-10dB) / 62Hz – 18kHz (+/-3dB) |
| Sensitivity 1w@1m | LF 100dB / MF 105dB / HF 113dB |
| Coverage (h x v) | 90 x 7.5 degree adjustable |
|---|---|
| LF Driver | 2 x 12” / 75mm VC |
| MF Driver | 1 x 10“ / 65mm VC |
| HF Driver | 2 x 3” compression driver |
| Impedance | LF 8 ohm / MF 8 ohm / HF 16 ohm |
| Crossover frequency | 250Hz / 1.3kHz |
| Vertical spread angle | 0-7 degree (1.8 degree step) |
| Dimensions (wxhxd) | 1019 x 364 x 553mm |
