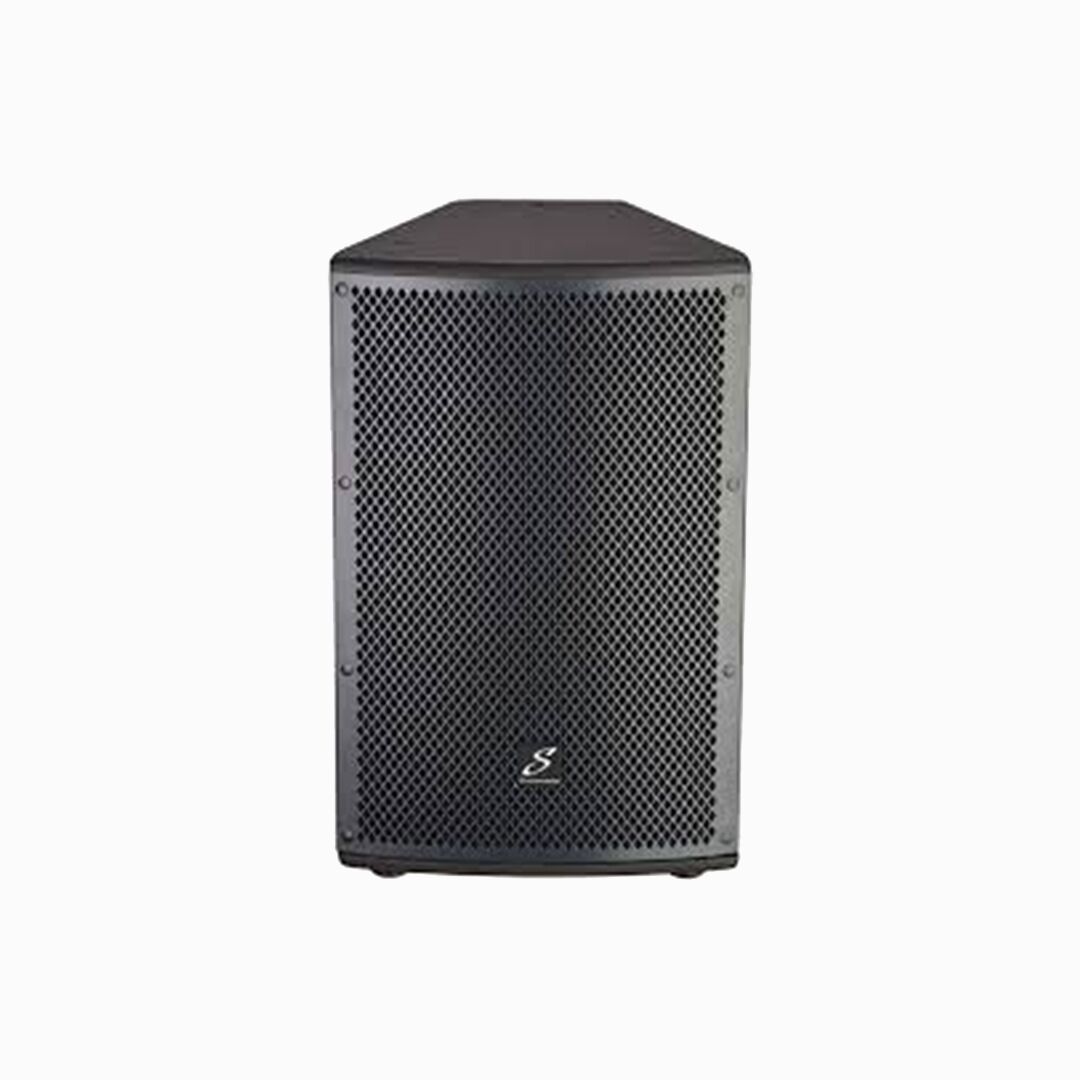

Studiomaster TRX speaker cabinet series
The TRX series is a range of high performance, versatile enclo- sures with a massive 15 models to choose from, with both passive and active models in the range.
All models feature cast aluminium chassis heavy duty bass transducers with large 1” throat compression drivers, packaged in a rugged hard wearing paint finish. TRX10, 12, 15 and 15M passive and active models have multiple M10 hanging points, and the TRX10, 12 and 15 also feature 35mm pole sockets.
All models have large recessed side handles, and for total ease the larger 2×15” TRX215 comes with rear mounted castors.
KEY FEATURES
- 12” / 65mm VC
- durable MDF cabinet
- cast aluminium speaker chassis
- 1″ throat compression drivers
- hard wearing paint finish
- multiple M10 flying points
- recessed carry handles
- two inputs with EQ
- low-cut filter
S P E C I F I C A T I O N S
| Format | 15” 2 way active speaker |
|---|---|
| Frequency response (-10dB) | 45Hz–20KHz |
| Sensitivity 1w @ 1m | -10dBV(line) |
| Power | 250W |
| Crossover frequency | 2.0KHz |
| LF | 15″ /65 mm voice coil |
| HF | 34mm comp driver/1″ throat |
|---|---|
| Coverage (HxV) | 80°x60° |
| Max SPL (@1m) | 126dB |
| Hanging system | 12*M10 hanging points |
| Dimensions (WxHxD) | 453×710×518 (mm) |
| Weight | 31.0Kg |
